- Ensures vapour recovery loading arms or hoses are correctly stowed and secured.
- Provision is provided for proximity sensor to detect when coupler is safely parked.
- Compatible with all known variants of vapour couplers.
-Nosecone - Zinc plated steel.
-Back plate - Zinc plated steel.
-Spring - Stainless steel.
Bolts onto bracket supplied by customer using 4 mounting holes. Align parking adaptor so slot in the nose cone is at the top to suit couplers such as VCF500 that have an opening shaft at the top.
May be made free standing (bolt to concrete or skid floor) by special order.

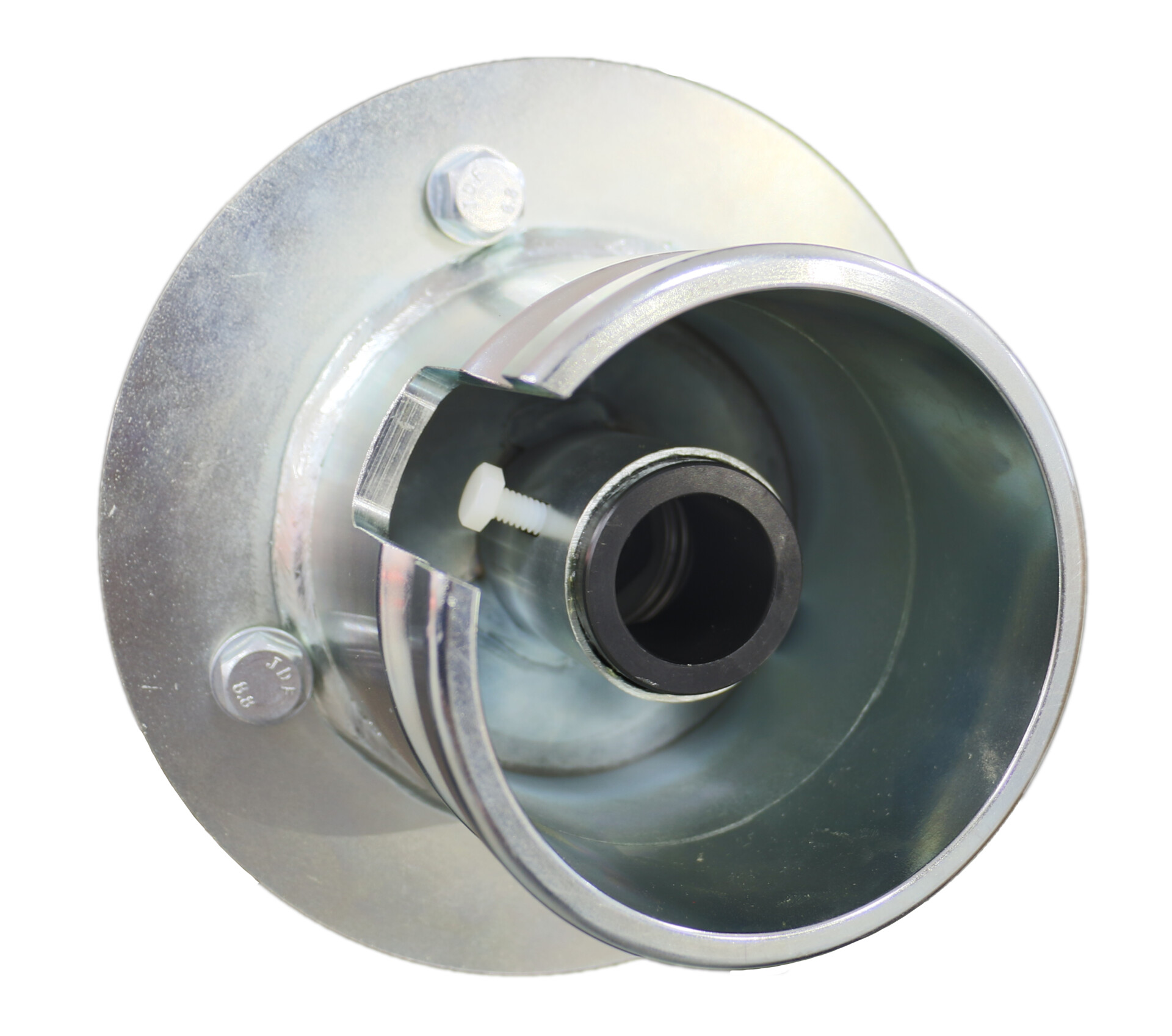

VCFPA: Vapour parking adaptor comes with proximity switch mount (prox switch not included).
VCF075W: 100mm Female Camlock to 100mm Male Hosetail vapour coupling.
VCF500: 4" Vapour Coupler with Dunny Lid. Spigot and blind flange.
5544: Proximity switch (M30).
