No routine maintenance required. Check sealing of valve as required by authorities.

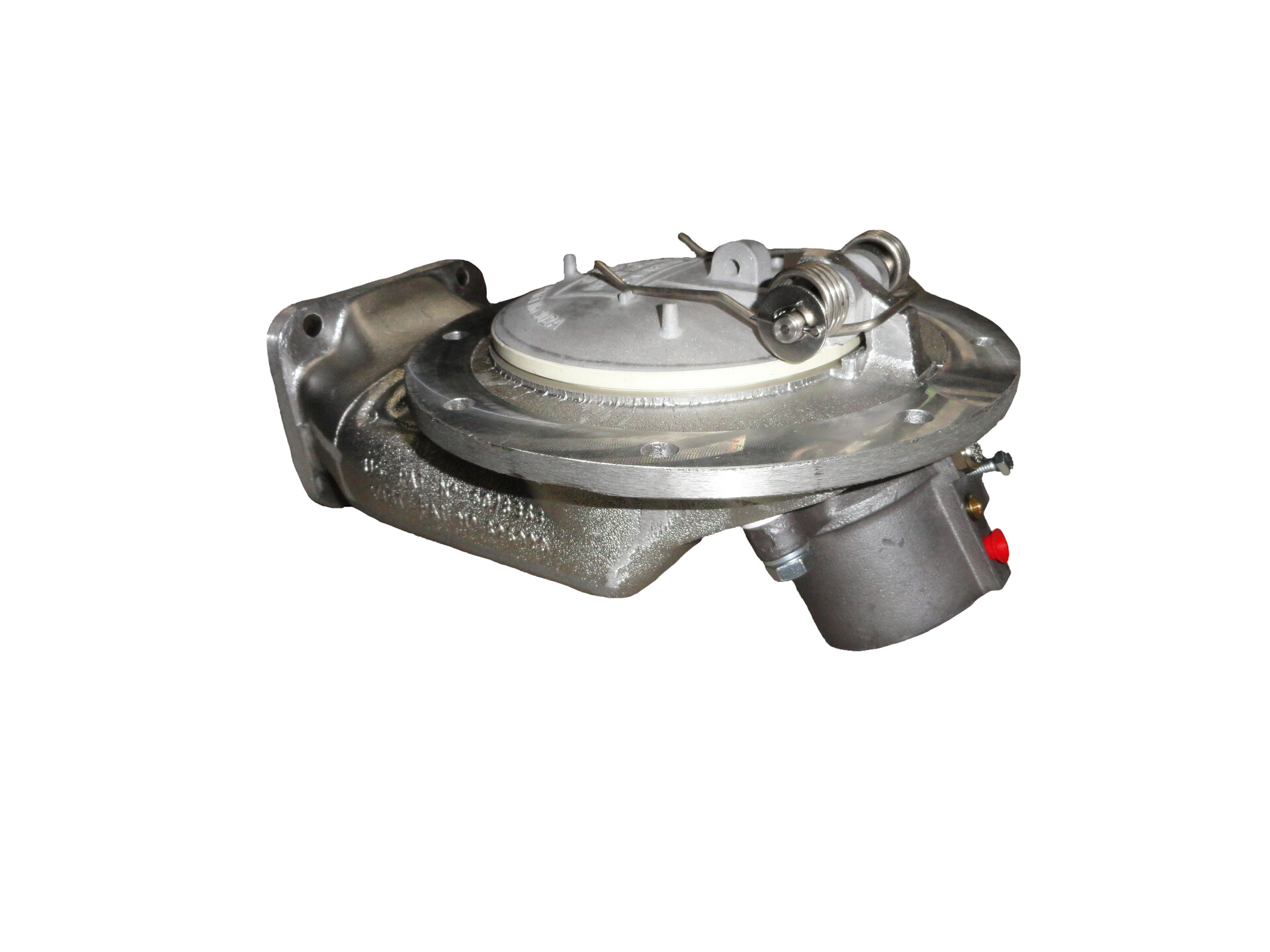

Air operator assembly is easily removable & replaceable, being a self-contained externally mounted assembly.
To use jacking screw, remove from stored position & screw into base of the ARO100.

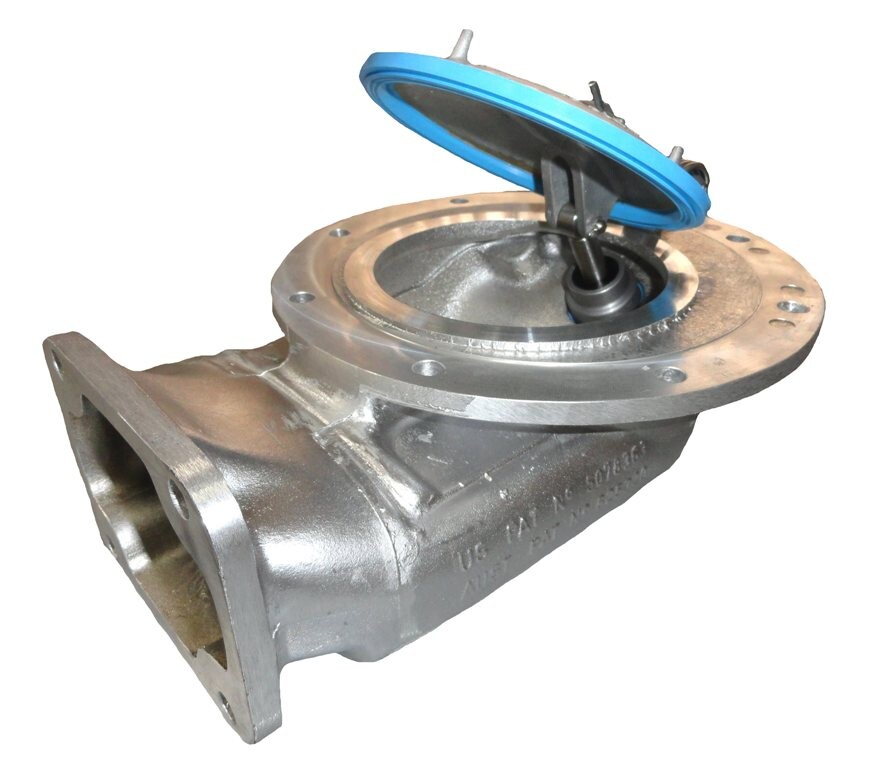

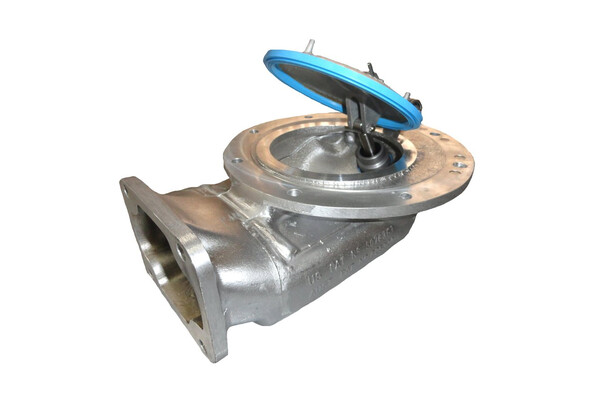

Nominal Ø100mm flow area except poppet is Ø125mm bore for minimal pressure drop. Needs a minimum of 350 kPa of air pressure.
Consumption 1.0L free air per stroke.

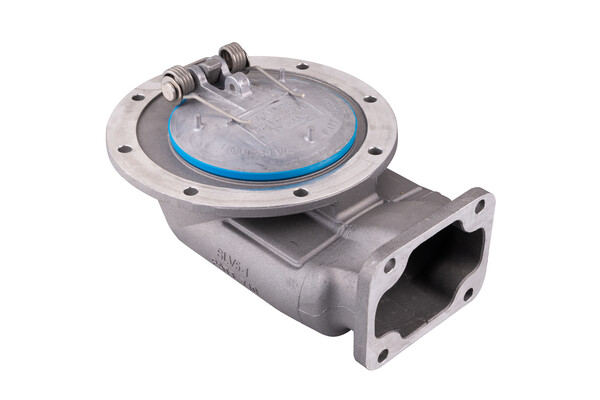

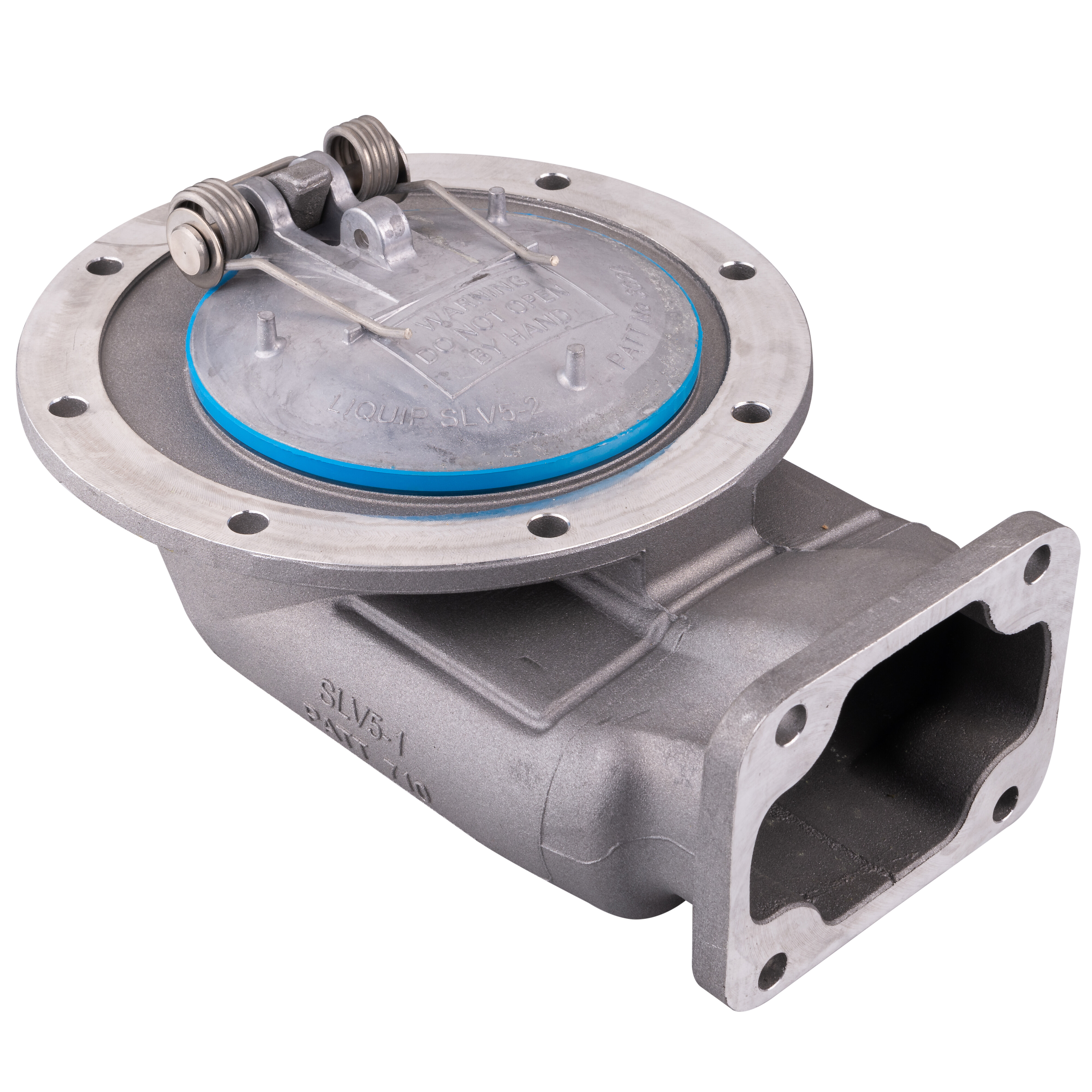

Bolted to sump or tank flange at the bottom of tank 8 holes Ø9.5 on a 210 PCD.

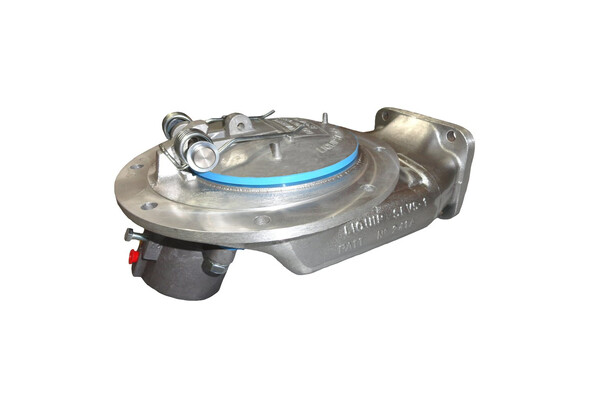

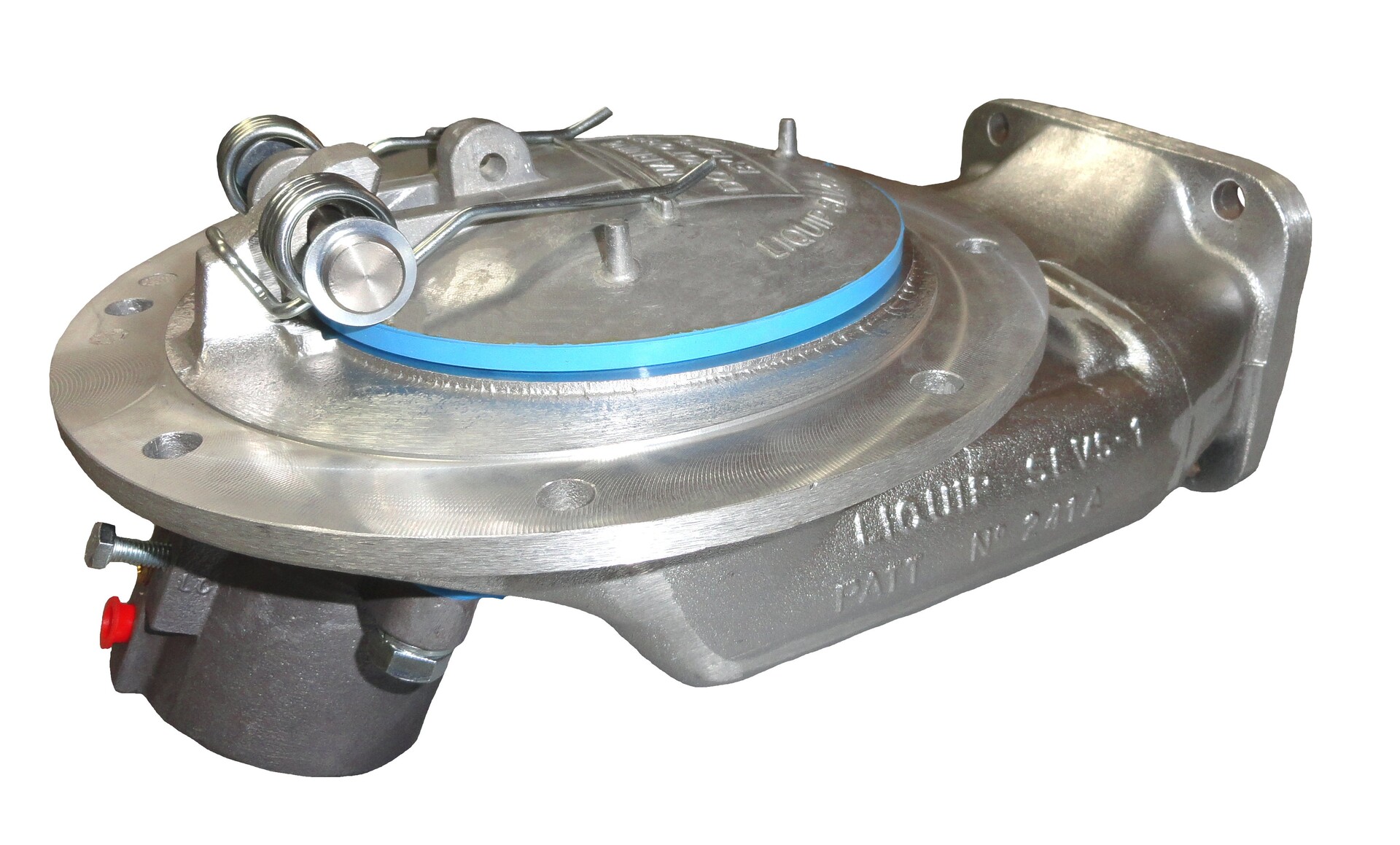

Aluminium body. Stainless steel main spindle/springs. Viton main seal bonded to aluminium poppet. Aluminium air ram body with acetal piston and Viton seals.
