Hatch Weather Covers - HWC300 Series



Liquip's lockable hatch weather covers mount onto the manhole and protect against the ingress of water into compartments and deter unauthorised access to the compartment hatches.

Features & Benefits
  • Fibreglass cover.
  • Simple stainless steel split pins allow for easy removal for maintenance.
  • Quick release rubber clamp allows for quick opening and closing of the cover.
  • Cover can be cut out for the vapour vent (AVV vent) to connect to the vapour coaming.
  • Compatible with the VOH41x series of hatches

Recommended products for replacement

    Technical Information

    Operation

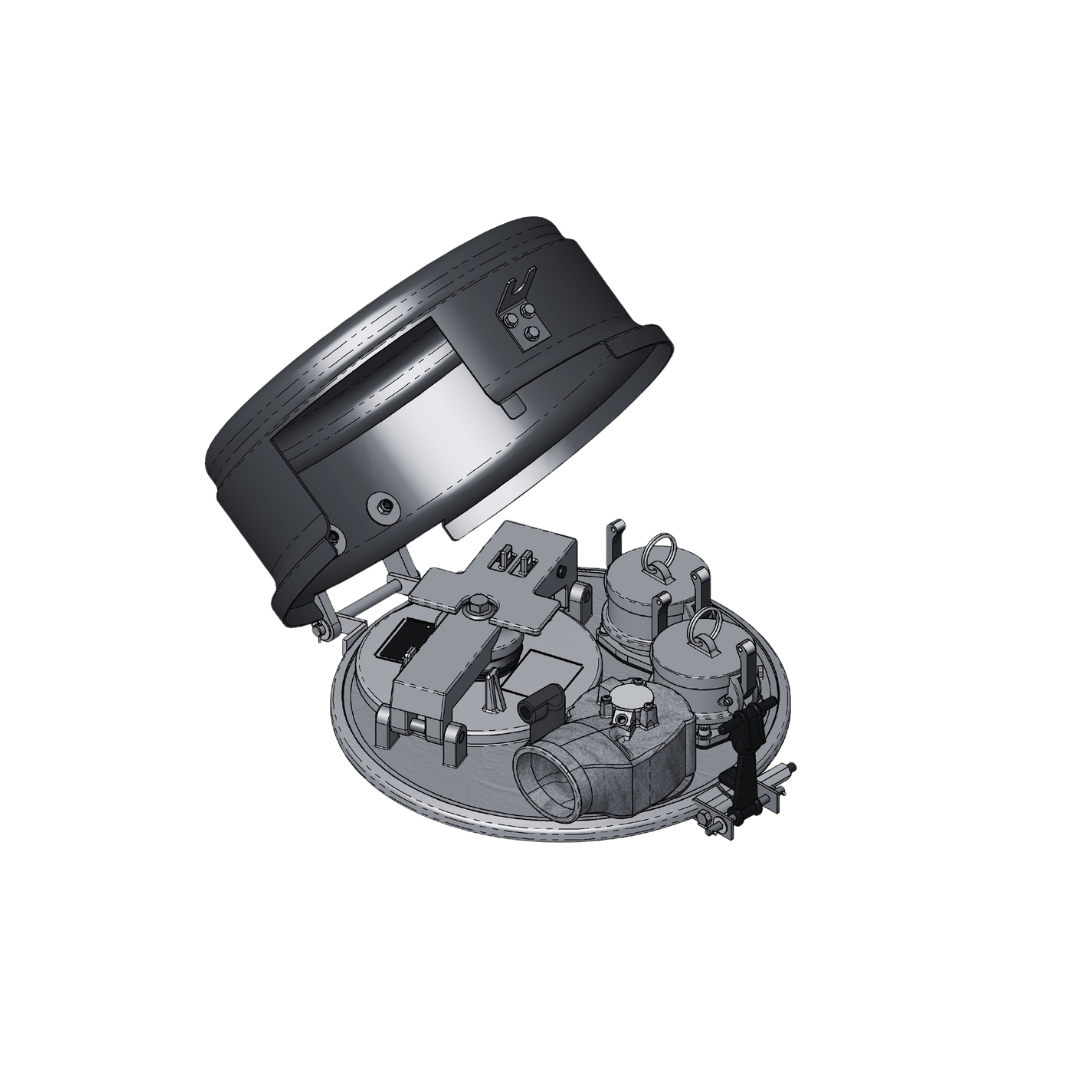

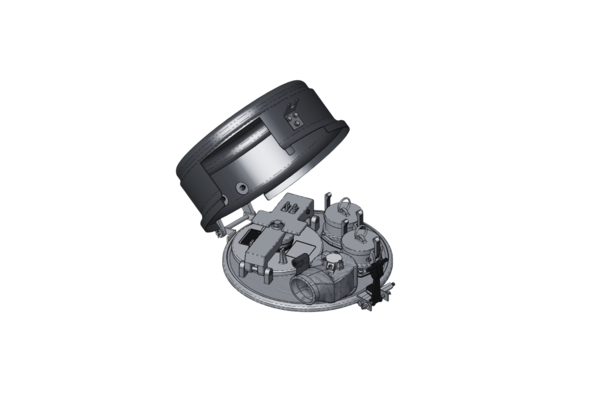

    Liquip hatch weather covers are hinged on one end with an over-centre rubber clamp latch on the opposite end.

    To allow full access to the hatch cover, unhook the clamp and lift the cover.

    Adjustment or Service
    Latching end is self-centring.

    Materials
    Cover - Fibreglass.
    Clampband & fasteners - Zinc plated mild steel.
    Hinge bracket on cover - Cast aluminium.

    Mounting
    HWC301 has an integrated clampband which replaces the standard clampband to secure the VOH hatch.

    Weight
    2.6 kg.

    Ordering Information

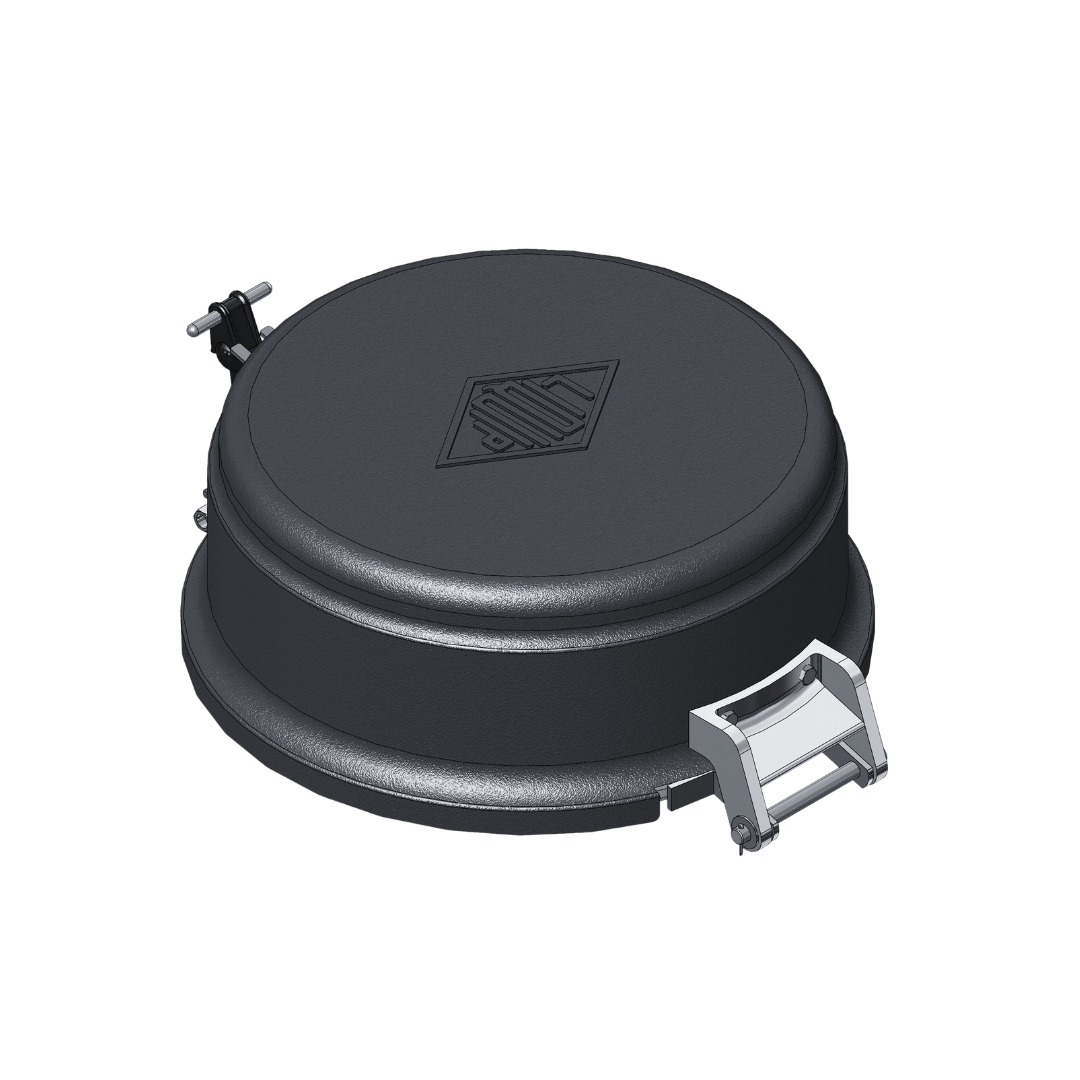

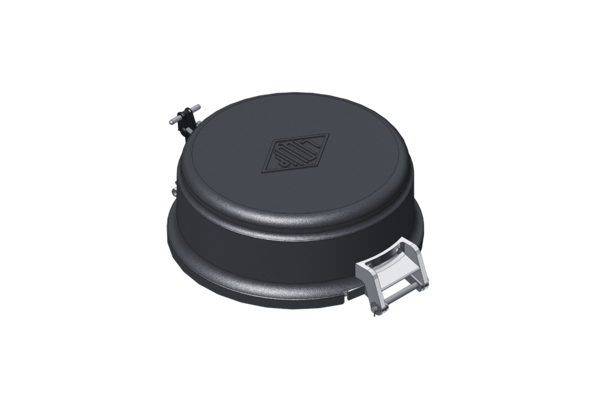

    HWC301: Black Hatch Weather Cover for VOH400 Manholes.(Previously Green).
    HWC301C: Black Hatch Weather Cover for VOH400 Manholes with AVV cut out. (Previously Green).

    Associated Equipment

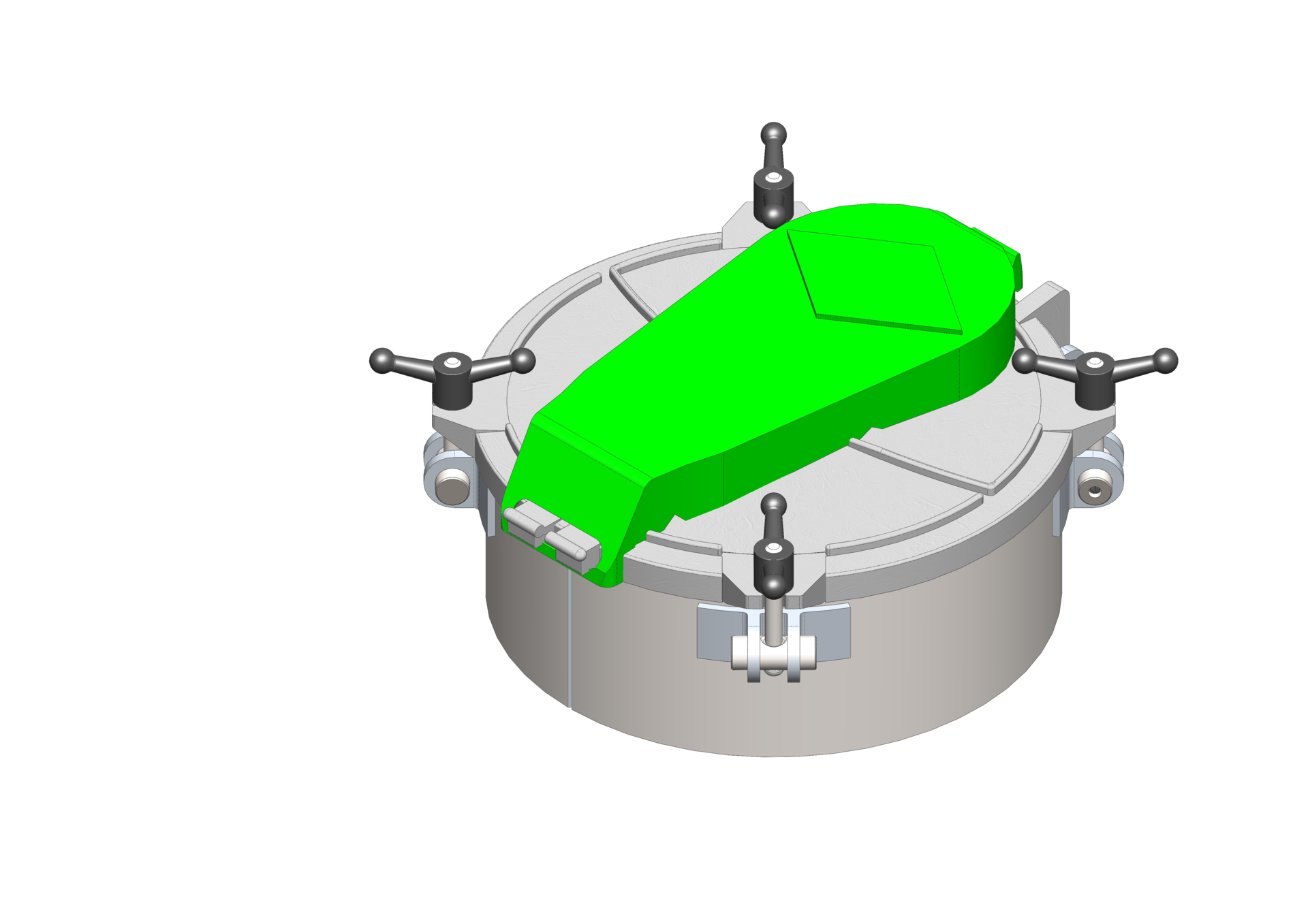

    VOH4116A8N0: Aluminium 18" manhole cover assembly (metric).

    VOH4116A8A0Z: VOH4116A8N0 comes with clamp band assembly and PVV104 (vapour vent).

    VOH4116A8N0Z: VOH4116A8N0 comes with clamp band assembly and PVV blanking plate.
