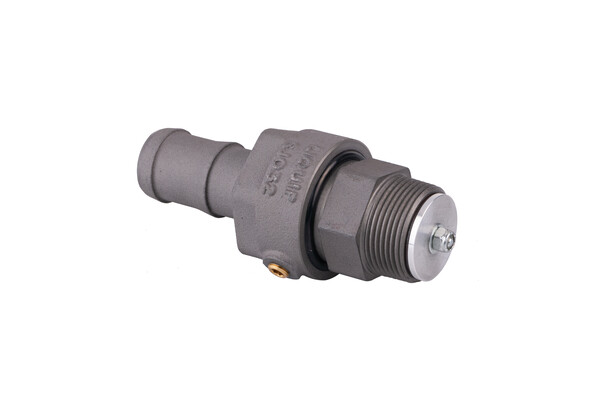

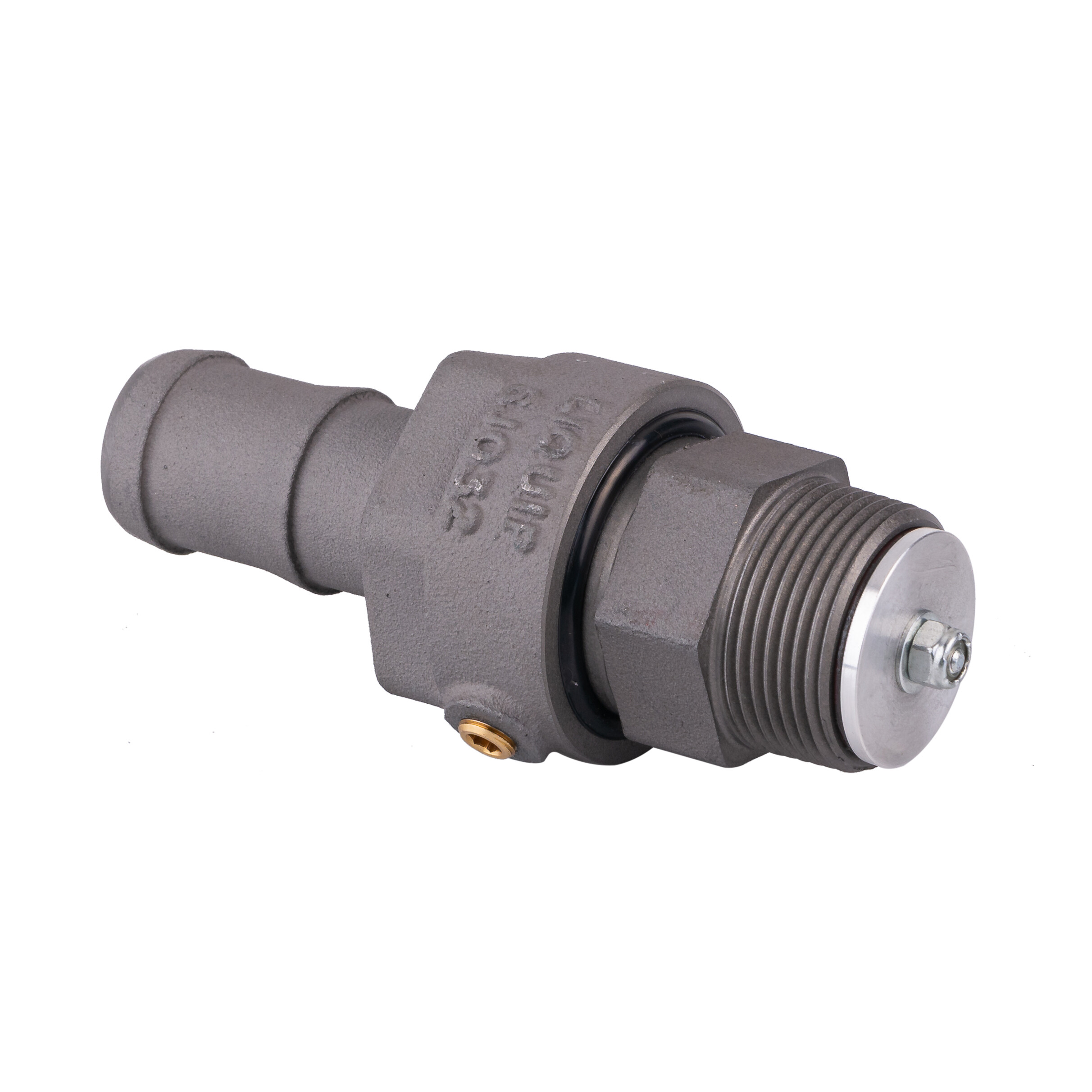

32mm aluminium swivel



The SJ032 is an aluminium swivel incorporating a 32mm hosetail and integral check valve to retain residual hose internal pressure (mandatory under NSC Regulations).

Features & Benefits
  • Ball bearings allow for trouble free rotation, thus eliminating thrust & hose kinking.
  • Swivel body is manufactured from lightweight aluminium, anodised for long life.
  • Swivel incorporates a check valve, to retain residual pressure in the hose. (Mandatory under NSC regulations).
  • Can be mounted via hose tail or threaded end.

Recommended products for replacement

    Technical Information

    Pressure
    Poppet opens at 55 kPa.

    Mounting
    1 ¼” tapered male BSP thread.
    1 ¼” hose tail.
    NOTE: Ensure sufficient flow area between poppet and bore of female body when assembled.

    Materials
    -Anodised aluminium body.
    -Aluminium poppet.
    -Steel ball bearings.
    -Viton sealing o-ring.

    Weight
    0.38 kg.

    Ordering Information

    SJ032: Swivel 32mm (1 ¼") with hold back valve and ball bearings.

    Associated Equipment

    SJ1.5L: Swivel 1½" straight swivel c/w hold back valve.
